SPC1168

Product Introduction

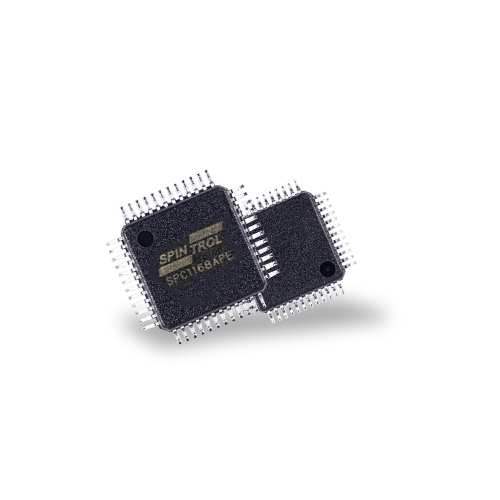

SPC1168 is a highly integrated system-on-chip (SoC) microcontroller. The SPC1168 incorporates a 32-bit ARM Cortex-M4 high-performance processor with a software-programmable clock rate as high as 200 MHz, 64 KB SRAM, embedded flash with 128 KB, and an extensive range of enhanced I/Os and peripherals. The device offers a 14-bit ADC, three PGAs, six enhanced PWMs, three general purpose 32-bit timers, as well as standard and advanced communication interface: an UART, an I2C and a SPI. These features make the SPC1168 ideal for motor control application. In addition, it also uses two innovative technologies, one is multi-region security protection technology to improve code security. The other is programmable IO technology, similar to FPGA, which can be configured into pre-defined communication module to support various application needs in a more cost-effective way.

To apply for sample

Specification Table

SpecificationSPC1168
CPU CoreM4
Maxim Frequency (MHz)200
Flash Maxim Size (KB)128
SRAM Maxim Size (KB)64
ADC Resolution (Bit)14
ADC Channel16
ADC sample and hold circuit (ch)3
Programmable gain amplifier (ch)3
Comparator (pair)5
PWM (ch)12
I2C1
SPI1
UART1
Programmable IO Module (1)1
PackageLQFP48
Operating junction temperature (℃)-40 ~ 125
(1) It has programmable capability which can convert the module into pre-defined communication module, such as CAN, LIN, SCI, SPI, QEP, etc.
