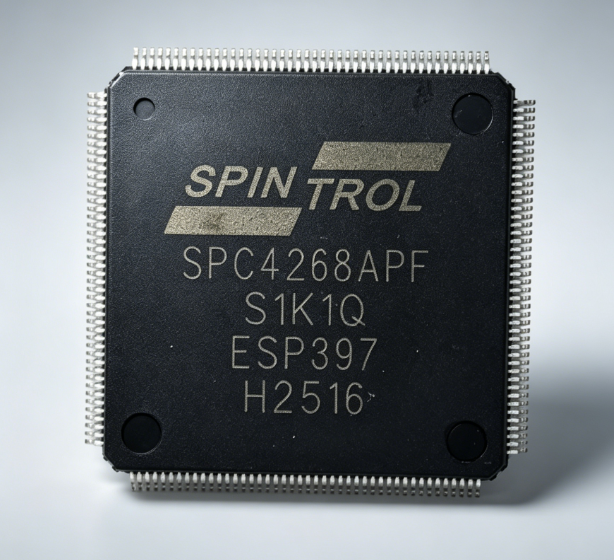

SPC4268
Product Introduction
Product Introduction
To apply for sample旋智工作人员会在收到申请后的 7 个工作日内处理，请耐心等待
| Specification | SPC4268 |
| Maxim Frequency (MHz) | 400 |
| RAM(KB) | 1024(ECC Protection) |
| Internal flash memory in the package(KB) | 8192(ECC disabled) 4096(ECC enabled) |
| ADC | 2*14 bit |
| PWM(ch) | 24 |
| ECAP | 5 |
| EQEP | 4 |
| General timer | 6*32 bit |
| Watchdog timer | 8*32 bit |
| EtherCAT slave station controller (ESC) | Up to 3 ports are supported. |
| UART | 6 |
| SPI | 6 |
| I2C | 2 |
| CAN/FDCAN | 2 |
| GPIO | 128 |
| Package | eLQFP-176 |
| Operating junction temperature (℃) | -40 ~ 125 |
