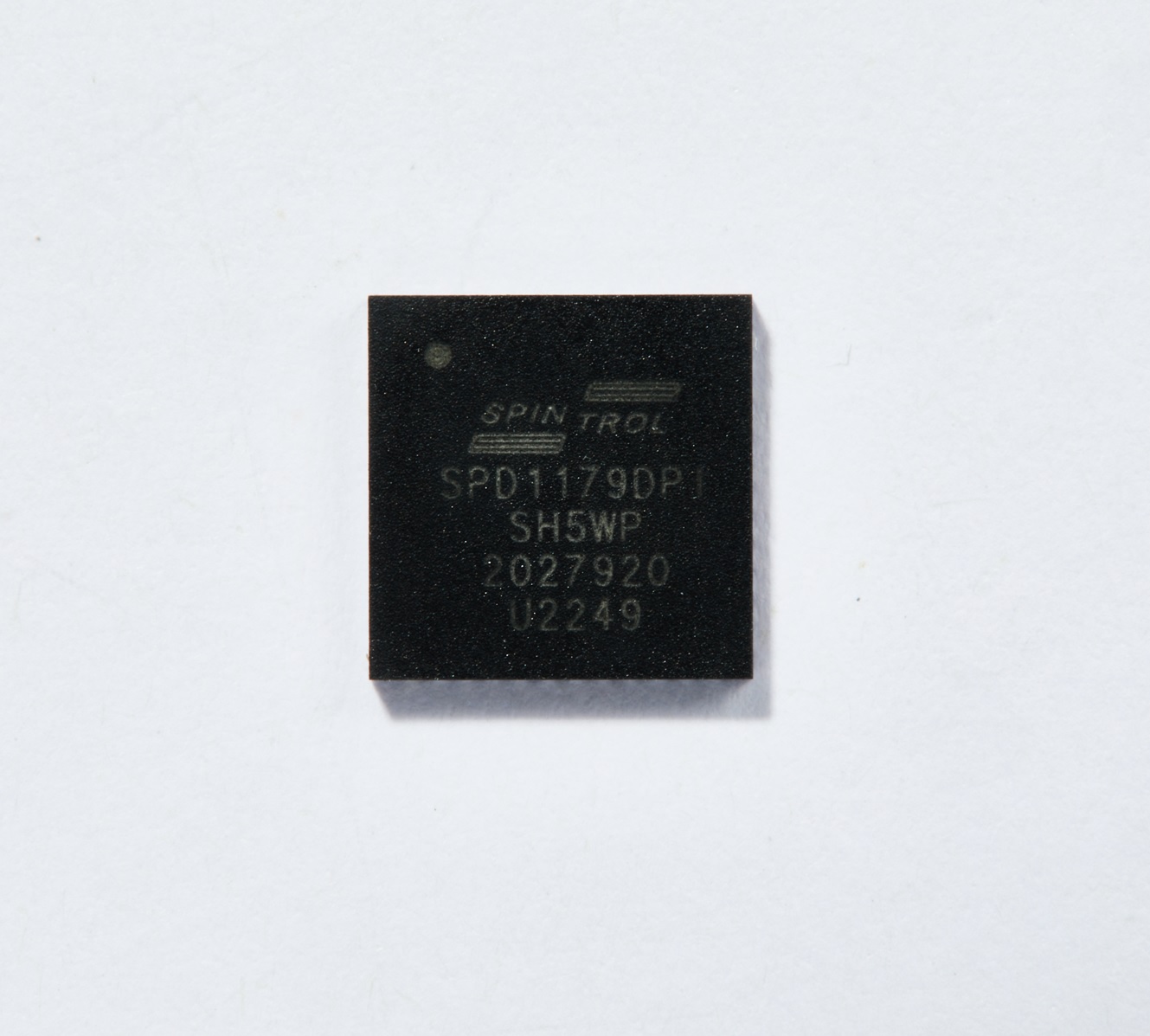

SPD1179

Product Introduction

SPD1179 is a motor control SoC for 12V automotive BDC and BLDC applications. It integrates MCU, current mode pre-driver, multiple LDOs and LIN transceiver. It incorporates a 32-bit ARM® Cortex-M4F core with 100 MHz, 32 KB SRAM, 128 KB embedded flash with up to 1 KB EEPROM emulated by extra 12 KB flash, and an extensive range of enhanced I/Os and peripherals. The device offers a 13-bit ADC, one differential PGA and one single-ended PGA, four enhanced PWMs, three general-purpose 32-bit timers, as well as standard and advanced communication interface: two UARTs with LIN support, two SPIs, one I2C and one CAN. The SPD1179 operates with a single power supply from 5.5V to 28V (42V for load dump) and supports stop/sleep mode for power saving. It integrates two 5V LDOs for internal power system and external sensor, and also integrates 3.3V and 1.2V LDOs for MCU operation. It supports 5V I/O for logic and 3.3V I/O for analog input channel. The junction temperature range is from -40 ⁰C to +150⁰C. The package type is 48-pin wettable flank QFN or 56-pin QFN. The SPD1179 employs function safety features such as backup clocking scheme, watchdog timer interrupt and reset, open/short detection and background critical voltage monitoring.

To apply for sample

Specification Table

SpecificationSPD1179
CPU CoreM4F
Maxim Frequency (MHz)100
Flash Maxim Size (KB)128
SRAM Maxim Size (KB)32
ADC Resolution (Bit)13
ADC Channel5/9
Monitor ADCYES
Programmable gain amplifier1+1
Comparator2 analog + 3 phase
PWM (ch)8
LIN/UART2
CAN/CAN-FD1
SPI2
LIN Transceiver1
CAN Transceiver0
2|3 phase pre-driver40V / 290mA
Power supplySingle 5.5 ~ 40V
PackageQFN48, QFN56
Operating junction temperature (℃)-40 ~ 150
Automotive grade:AEC-Q100 grade 1

Download Datasheet

FileName
FileSize
UploadTime
Operate
SPD1179_FW_V10_0_5.zip
13190
2024-11-15
RC-032-2409004_Flash使用指南_C1.pdf
800
2024-10-12
RC-032-2409001_IAP Loader使用指南_C1.pdf
755
2024-10-12
RC-032-2408029_IO使用指南_C1.pdf
796
2024-10-12
RC-032-2408028_I2C使用指南_C0.pdf
568
2024-10-12
RC-032-2408027_ECC功能使用指南_C2.pdf
1111
2024-10-12
RC-032-2408026_DAC使用指南_C0.pdf
714
2024-10-12
RC-032-2408025_COMP使用指南_C0.pdf
482
2024-10-12
RC-032-2408024_ADC使用指南_C0.pdf
1512
2024-10-12
RC-032-2408023_CORTEX M4中断系统简明使用指南_C0.pdf
473
2024-10-12
RC-032-2408021_Security使用指南_C0.pdf
713
2024-08-30
RC-032-2408020_KEIL使用指南_C1.pdf
1319
2024-08-30
RC-032-2408019_ISP下载使用指南_C0.pdf
428
2024-08-30
RC-032-2408018_CM4_FP FPU使用指南_C1.pdf
462
2024-08-30
RC-032-2408017_CLOCK使用指南_C0.pdf
514
2024-08-30
RC-032-2408016_SPI使用指南_C0.pdf
359
2024-08-30
RC-032-2408015_PWM使用指南_C0.pdf
794
2024-08-30
RC-032-2408014_PGA使用指南_C0.pdf
1171
2024-08-30
RC-032-2408013_ECAP使用指南_C0.pdf
613
2024-08-29
RC-032-2408012_芯片性能使用指南_C0.pdf
282
2024-08-29
RC-032-2408011_在RAM中执行中断函数使用指南_C0.pdf
632
2024-08-29
RC-032-2408010_UART使用指南_C1.pdf
462
2024-08-29
RC-032-2408009_Timer使用指南_C1.pdf
727
2024-08-29
RC-032-2408008_RAM程序调试使用指南_C1.pdf
961
2024-08-29
RC-032-2408007_IAR使用指南_C0.pdf
3067
2024-08-29
RC-032-2408006_ADC建立时间计算方法使用指南_C0.pdf
400
2024-08-29
RC-032-2408004_ADC PGA校准使用指南_C0.pdf
729
2024-08-26
RC-032-2408003_J-Flash以及RTT使用指南_C0.pdf
1137
2024-08-26
RC-032-2407011_SPD1179_Circuit Design Guide_C1.pdf
2050
2024-08-06
RC-031-2407008_SPD1179 Datasheet_C0.pdf
4410
2024-08-06
RC-034-2407005_SPD1179 Technical Reference Manual_C0.pdf
21735
2024-08-06
RC-032-00019_SPD1179 Bootloader Download Usage Guide A0.pdf
340
2023-05-19
RC-032-00017_SPD1179 LDF Document Usage Guide.pdf
295
2023-05-19
SPD1179_Security_Application_Note.pdf
204
2023-05-19
SPD1179 Bootloader Download Usage Guide A0.pdf
340
2023-03-27
SPD1179 J-Flash软件烧录使用指南.pdf
665
2023-03-27
SPD1179_Demo_Board_原理图V2.pdf
1541
2023-03-27
SPD1179 DEMO开发板应用简介.pdf
3165
2023-03-27
SPTool.zip
12814
2024-02-01
串口调试工具
448
2024-01-26
RC-032_SPC11x8_SPD11x8 UART单元不定长数据接收.pdf
552
2022-09-16
RC-032_SPC11x8_SPD11x8 WDT单元使用指南.pdf
521
2022-09-16
RC-032_SPC11XX系列环境调试指南.pdf
8057
2022-09-16
RC-032_SPD11xx系列芯片失效分析指南.pdf
745
2022-09-16
[视频] 旋智 SoC 快速入门之下载和调试程序 Spintrol SoC quick start guide
外链
2022-06-24
Mass_production_programming_tool_user_manual.docx
7411
2022-05-09
SPC11x8_SPD11x8 SIO 使用指南.zip
3897
2022-03-07
SPC11x8_SPD11x8 Application note.zip
8310
2022-03-07
ISP工具使用指南.pdf
528
2022-01-26
[EN] SPC11x8_SPD11x8_Programming_Specifications.pdf
1463
2022-01-26
[中文] Spintrol软件调试指南.pdf
8058
2022-01-26
[视频] 旋智烧录器操作指南
外链
2022-01-14
